Application
- Transfer of clean water or other liquids with similar physical and chemical properties.
- Elevation of water for wells and garden irrigation.
- Water supply for small houses and sprinkling systems.
- Pressure boosting or hydraulic support equipment.
Pump
- Body built in resistant cast iron.
- Impeller made of PPO or brass.
- Shaft made of AISI 304 steel and steel 45.
- Maximum liquid temperature: +60 °C.
- Maximum suction head: 9 meters.
Motor
- Motor with copper winding for greater efficiency.
- Built-in thermal protector to prevent overheating.
- Maximum liquid operating temperature: +40 °C.
- Maximum ambient temperature: +40 °C.
Installation recommendations
The shallow well pump should be installed in a dry, ventilated and level place, which facilitates maintenance and protects against freezing temperatures. It is recommended to be fixed on a solid base, preferably concrete, and to have an efficient drainage system.
Operating warnings
The pump should not be operated without first priming with water, as this may cause irreversible damage to the seals and impeller. Before start-up, be sure to completely fill the pump chamber and inlet pipe with clean water.

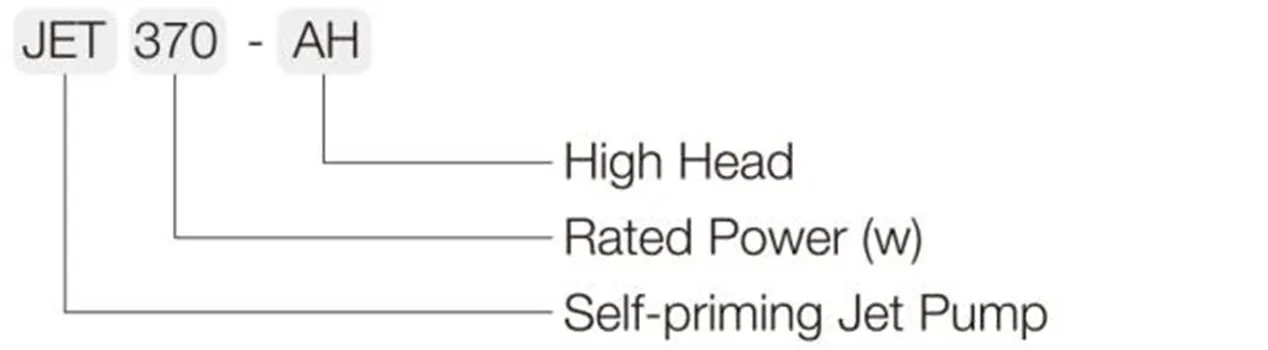

Model Instruction
Technical Table
Performance Curve
Model Analysis
